Sunday, June 6, 2010

Setting Streamyx ADSL wireless router+modem in your home



Being in the IT field, I try my best to help others build certain simple IT solutions in their home. One such requirement was to setup a wireless ADSL modem router, in my in-laws house. Having a wireless Streamyx ADSL router modem, would allow wireless laptops, PCs, and IPhones in the household, to be able to access Internet directly , wirelessly & easily. That wireless modem router modem would be connected to a telephone line which has been registered for the Telekom Malaysia Internet ADSL Streamyx line.

I did a search on which brand of wireless router modem to buy , on the Internet. I stumbled upon the list of Telekom Malaysia certified S
treamyx DSL modems (see link below) .

Based on the list , I decided to buy the Dlink DSL-2640T Wireless G ADSL2+ Router (RM169.00), as I have experience in using Dlink products, and I feel they
are a reliable brand for home use IT products market.

Dlink DSL-2640T Wireless G ADSL2+ Router
- 4 LAN ports ( for physical network cable connection to PCs, laptops, etc )
- 1 tel line port
- ADSL2+ provides a dedicated service over a single telephone line operating at speeds of up to 24Mbps downstream and up to 1Mbps upstream ( adequate in terms of Streamyx ADSL line )
- built-in firewall for security ( I would recommend using PC firewalls rather than the Dlink firewall, easier to manage & troubleshoot by users)
- easy to install with manual & wizar
ds
- web based setting page - can set wireless access password in WEP, WPA & WPA2 encryption protocols
- Streamyx ADSL modulation uses G.dmt, and this modulation has full rate downstream: up to 8 Mbps / upstream: up to 1 Mbps ( able to support speeds of up to 8Mbps, but actual speed is limited , or depends on Streamyx package)
- has QOS support (Quality of Service) which allows bandwidth allocation to specific users, to ensure fair line bandwidth usage & no line monopoly by one user (complicated to set, for normal users).


The screenshots below shows settings in the D
Link DSL2640T for a typical home Streamyx line ( dynamic IP, using streamyx ID & password ). This setting below uses PPPoE/PPPoA mode (and not Bridge mode like old Streamyx modems), which does not require users to use any Streamyx dialer software to run & connect to Internet. You can connect to Internet the same way as in outside wireless hotspots like Starbucks , Secret recipe, and petrol stations.

Streamyx modem setup steps :

a) http://smartinfo.com.my/IT/PC_Hardware/TM_Net_Streamyx_ZTE_ZXDXL_831_Modem.htm

b) http://www.dslreports.com/forum/remark,15838485

Streamyx modem setup steps - list of default passwords

a) http://www.kkboss.com
/tutorial/streamyx-adsl-modem-default-password

List of Telekom Streamyx certified DSL modems :
a) http://www.streamyx.com.my/get_streamyx/get_streamyx.php?id=getstreamyx_package_dsl

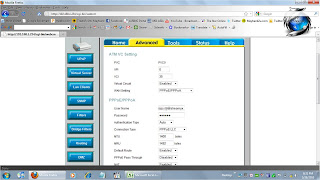

Setting for Dlink DSL2640T to use home Streamyx (1/3)














Setting for Dlink DSL2640T to use home Streamyx (2/3)













Setting for Dlink DSL2640T to use home Streamyx (3/3)
